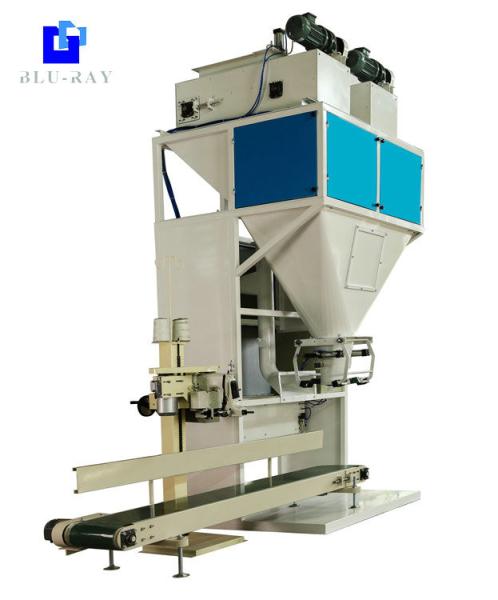

220V/380V Wood Shavings Bagging Machine

Name: 220V380V Wood Shavings Bagging Machine
Brand: BLU-RAY
Price: 5 USD

Place of Origin : Jiangxi, China

Brand Name : BLU-RAY

Certification : CE,ISO,CMC

Supply Ability : 100 Set/Sets per Month

Packaging Details : 1, Each set of bagging machine will be packed in a big wooden box, then in the container 2, Customized needs available

MOQ : 1 Set/Sets

Price : $5,000.00 - $10,000.00 / Set

Application : Other

Driven Type : Electric and Pneumatic

Dimension(L*W*H) : 3000*1100*2500mm

Product name : DCS-50WL bagging machine

Three load cell : high weighing accuracy

Three travelling cylinder : feeding speed with fast-midium-slow

Control box : full touch screen panel

Automatic bag clamp : sensor control

PLC system : easy operating

Packing material : granular or good flow powder

Sewing machine : full automatic

OEM service : 15 years R&D experience

Quality warranty : one year

Condition : New

Packaging Type : Bags

Packaging Material : Wood

Automatic Grade : Semi-automatic

After-sales Service Provided : Engineers available to service machinery overseas

Type : Other

Voltage : 220V/380V/50HZ

Power : 3-6KW

Weight : 1000KG

Port : Shanghai or any port of China

Contact Now

Product Description

Product Name	Non weighing hopper Gravity feeding mechanism packing/packaging/bagging/filling machine
Item	DCS-50WL
Application Materials	Granular materials such as plastic particles,feed, fertilizer( urea etc), grain,sugar, bean, rice
Display Resolution	5g, 10g
Weighing Range	10-50kg/bag or customized needs
Precision	+/-(0.1-0.2)% FS
Packing Capacity	240-360bags/hour or more fast
Dimension(LWHmm)	See detailed drawing, the size can be customized according to your site
Power Supply	AC220V/380V, 50HZ, 1P/3P
Air Source	0.5-0.7 Mpa
Power	3KW-4KW
Working Temperature	-10~40 ℃
Relative Humidity	≤90% RH(Non-condensing)

Machine Accessories

Description	Remarks
Packing scale framework	Floor structure, high quality carbon steel
Feeding mechanism	Gravity feeding type, three grade feeding speed with fast-medium-slow
Weighing sensor	Installation 3pcs(DCS-50WL,DCS-50L)/6pcs(DCS-50SK) load cell, famous brand
Control system	PLC system, full automatic, data record & print function
Control box	Color touch screen, English/Chinese interface
Cylinder	AirTAC brand, big force, high quality, more stable, long service life
Solenoid valve	AirTAC brand, with indicator
Electric component	Schneider brand, short circuit protection function
Pneumatic component	AirTAC brand, stable and reliable
Motor	Frequency conversion motor with smooth working
Automatic sewing machine	Photoelectric induction control, automatic thread knife cut, date record & print
Belt type bag conveyor	Speed governing design

Application

220V/380V Wood Shavings Bagging Machine

Detailed Images

DCS-50WL 240-360bag/hour GRAVITY FEEDING packing/packaging/bagging/filling machine picture

220V/380V Wood Shavings Bagging Machine

Flowing chart:

Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-

testing-packaging and transport-after service

220V/380V Wood Shavings Bagging Machine
